Description
This set of plastic replicas represent miscellaneous specimens, such as an example of boat sampling (trepanning), preparing the transitioning of the external surfaces of two different wall thicknesses together whereas they can be welded, transitioning the inside diameter of a thicker pipe whereas it can be welded to a thinner wall thickness pipe, 1″ O.D. tubing welded together with a resistance flash butt weld process and an example of a good 2.5″ O.D. pipe with a good root pass and face reinforcement.
Details

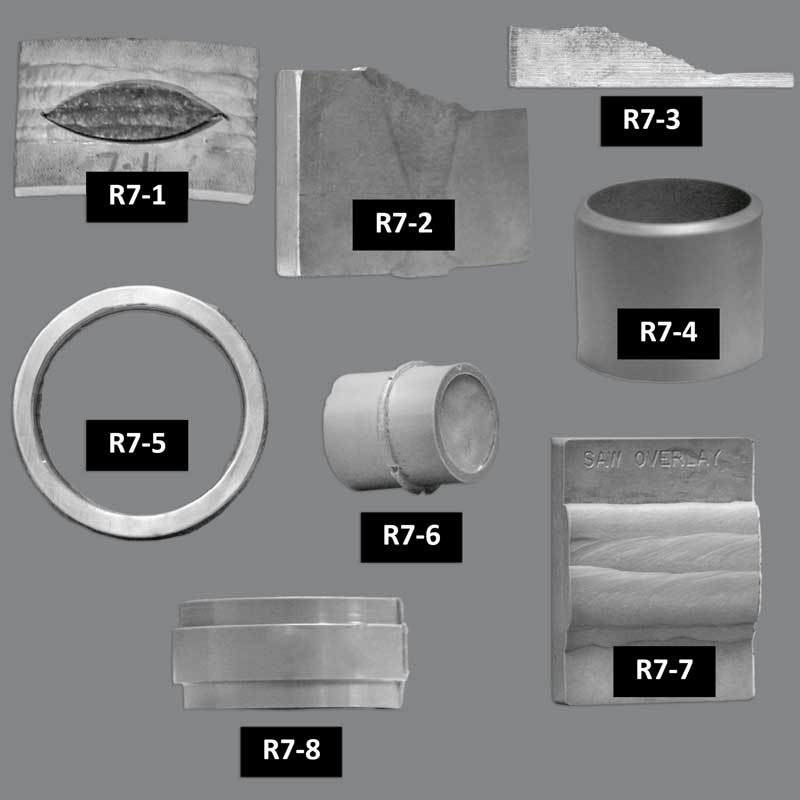

R7-1: Trepanning or Boat Sampling
R7-2: Part 1 Transitioning of two (2) different wall thickness for external alignment
R7-3: Part 2 Transitioning of two (2) different wall thickness for external alignment
R7-4: 2.375″ O.D. Sch. 160 Internal transition to 2.375″ O.D to Sch. 40 for internal alignment
R7-5: GTAW 2.5″ O.D. pipe with face re-inforcement with 2 passes showing-acceptable, root-acceptable
R7-6: 1″ O.D. tubing with a flash butt weld connection
R7-7: Submerged Arc Weld Overly made with 309 S.S. filler metal
R7-8: Electron beam weld
