Edge Shape Preparation Set (Out of Stock)

$350.00

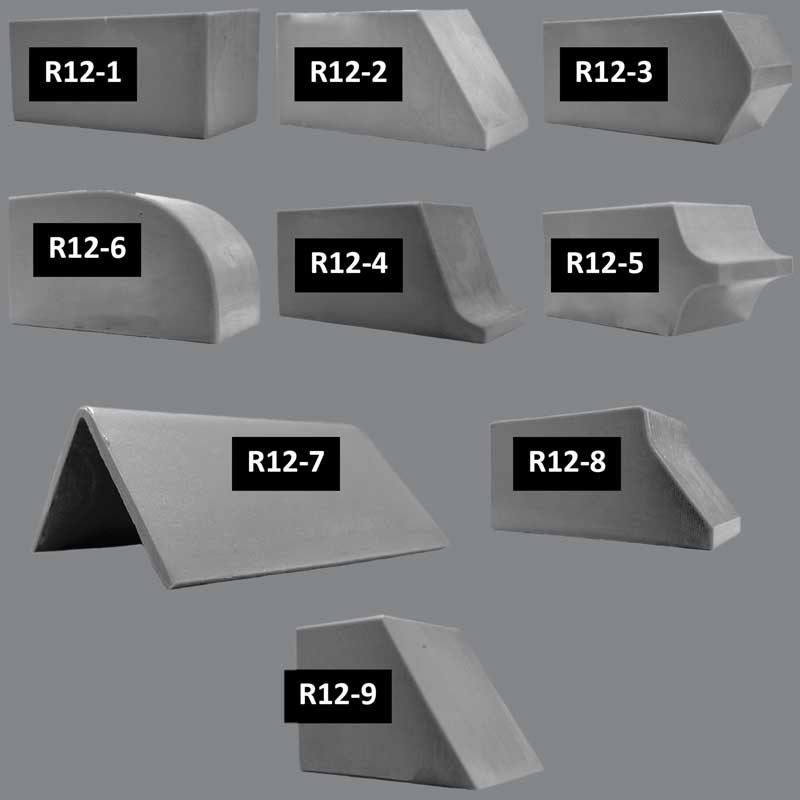

Nine piece set of plastic replicas showing the different types of edge shape preparation.

**Please call (361) 643-3400 for availability.

Out of stock

SKU: BUR12-1 Category:

Description

There are many different ways to prepare the edge of a joint for welding.  The replications shown in these plastic replicas give an example of different edge preparations.  They can be used in many different joining configurations.

Details

R12-1:  Square edge on one (1) member

R12-2:  Single Bevel Edge Shape on one (1) member

R12-3:  Double Bevel Edge Shape on one (1) member

R12-4:  Single J-Groove Edge Shape on one (1) member

R12-5:  Double J-Groove Edge Shape on one (1) member

R12-6:  Round Edge Shape on one (1) member

R12-7:  Flange Edge Shape (lightweight sheet metal)

R12-8:  Compound Bevel Edge Shape on one (1) member

R12-9:  Scarf (used for brazing) on one (1) member
