Material Identification Set (Out of Stock)

$1,200.00

Thirty-six piece set of plastic replicas to practice identifying forgings and fittings.

**Please call (361) 643-3400 for availability.

Out of stock

SKU: BUR2-1 Category:

Description

These replicas were developed to train the fabrication/erection inspector to be able to verify that the correct material components were used in the fabrication and installation of piping/structural components.  As most material is required to be stamped or striped with the proper material identification, the inspector should be able to quickly identify that the correct material has been used.  These are common components that you may find in most assemblies, but only cover a sampling of them for training.  Piping will have the outside diameter, wall thickness, material specification, grade, and the MTR Number stenciled on the outside diameter of the pipe.

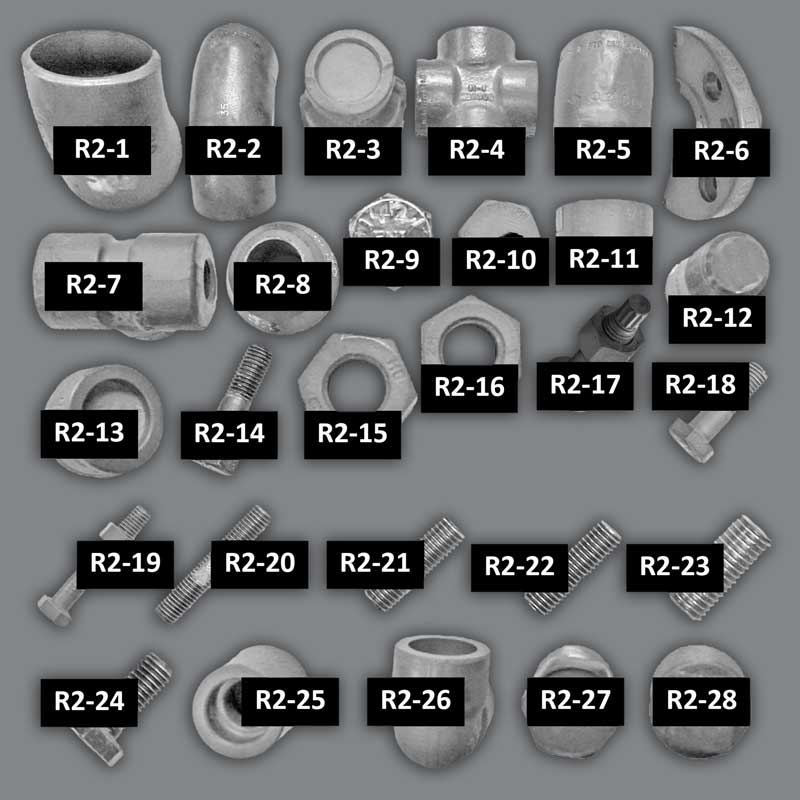

Details

R2-1:  1″ Std. SA/A234 Grade WPB 45° long radius elbow-HT. ???

R2-2:  1″ Std. SA/A234 Gr. WPB 90° long radius elbow-HT. 538918

R2-3:  1/2″ X 3/4″ Cast mallable iron bell reducer-China-HT. None identified

R2-4:  3/4″ X 3/4″ X 3/4″ X 3/4″ SA105/A105 socket weld cross

R2-5:  2″ Std. A234 Grade WPB 45° long radius elbow-HT. B09AAA

R2-6:  1″ RF Slip-on A105 150# black flange-B16.5-HT. AXXN0399

R2-7:  1/2″ X 1/2″ X 1/2″ SA105/A105 threaded Tee-HT. 53509

R2-8:  36″ X 1-1/2″ saddolet SA105/A105-HT. 695VFL

R2-9:  3/4″ Machine bolt-SAE J429 Grade 8 (6 equally spaced radial lines)

R2-10:  1-1/4″ SA105/A105 threaded forged steel plug-HT. 56CCCL

R2-11:  36-11-1/2″ X 3/4″ SA182/A182 F304L saddolet-HT. ACLP

R2-12:  3/4″ SA182-304/304L 3000# bull plug-HT. ACUW

R2-13:  3/4″ SA182 304/304L 3000# socket weld 45° elbow-HT. 81Z

R2-14:  A490 (LE) Machine bolt

R2-15:  A194 Grade DH nut

R2-16:  A194 Grade 2H nut

R2-17:  A325 Lejune Round head X 5/8″ structural bolt w/nut

R2-18:  A325 X 5/8″ diameter machine bolt w/nut

R2-19:  S30400 X 1/2″ diameter machine bolt w/nut

R2-20:  A193 B7 X 3/4″ diameter stud bolt (interm. temp)

R2-21:  A193 B16 X 3/4″ diameter stud bolt (high temp)

R2-22:  A320 L7 X 3/4′ diameter low temperature stud bolt

R2-23:  A307 X 3/4″ diameter machine bolt

R2-24:  A193 B8 X 3/4″ diameter stud bolt

R2-25:  1/2″ SA182/A182-F316/F316L 3000# Socket Weld Coupling-HT.749015

R2-26:  3/4″ 3000# SA182/A182-F22 Cl 3 Socket weld 90° Elbow HT. G3M

R2-27:  1/2″ SA105/A105 Hexagon (six sided) forged steel threaded plug

R2-28:  3/4″ Cast Iron four sided threaded plug-

R2-29:  2-1/16 API-6A flange, 10k BX 152 W/2 XH AAX 08 75k PSL-1 T/C-K M/C-BB OEC Ring Type Joint

R2-30:  1″ SA/A-182 F12 Cl. 2 45°elbow (1-1/4 Cr-1/2Mo) forging-(P-4, Gr. 1)

R2-31:  1″ SA/A-182 Gr. F22 Cl. 1 45°elbow (2-1/4 Cr-1Mo) forging-(P-5A)

R2-32:  3/4″ SA/A-335-F5 Sch. 160 Pipe Nipple (5Cr-0.5Mo) forging (P-5B) HT. Penn JBBM

R2-33:  3/4″ SA/A-182 Gr. F5  bull plug (5Cr-1/2Mo) forging (P-5)

R2-34:  1″ SA/A-350 WPL-2-36-3/4 3000# sockolet weld forging-(P-1, Gr. 2)

R2-35:  1″ SA/A-420-WPL-3 Schedule 40 45° elbow fitting (9B)

R2-36:  1″ SA/A-420-WPL-9 Schedule 40 45° elbow fitting (9A)

R2-37:

R2-38:

R2-39:

R2-40:
